3 Bolt Pattern Slotted Street Rod Rotors Pair for PEM Econo Brake Kit
3 Bolt Pattern Slotted Street Rod Rotors Pair for PEM Econo Brake Kit

Our Price: $179.07


Free Shipping
Availability:: Usually Ships in 1 to 2 Business Days
Product Code: R960X11250-DS-3BP
Qty:

Description

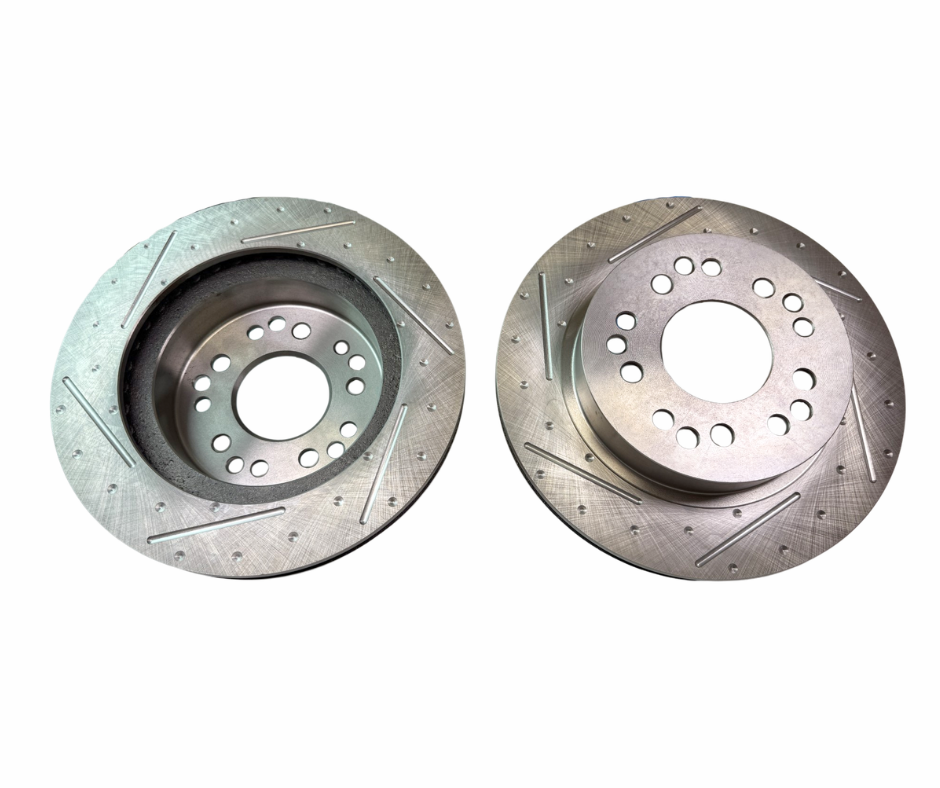

Slotted Street Rod Rotors for PEM Econo Brake Kit - Pair
Comes with 3 Bolt Patterns Included: 5x4.5, 5x4.75, and 5x5 (1/2" Holes)
Features
    • Left and right are slotted for correct rotation.
    • 11-1/4" vented rotor with 5 on 4-1/2" and 5 on 4-3/4" bolt circles.
    • 4 1/2" bolt pattern has 1/2" holes and 4 3/4" bolt pattern has 7/16" holes for stock wheel studs, 5" bolt pattern has 1/2" holes
    • Rotor has 6.25" Inside Diameter for axle flange
    • Rotor width is .960" where the brake pads work.
    • Hub Register Inside Diameter is 2.78".
    • Brake Hat Backspacing is 2.25".
    • Thickness on the rotor hat/flange where it bolts to axle is .250" (+ or - .10").
    • Designed to use '78-'88 GM Metric midsize brake calipers
